The World's First Fully Automatic Steel Cage Welding Production Line Was Put Into Production!
Nov 03, 2022| The world's first fully automatic steel cage welding production line was put into production
After successively cooperating with Shudao Group, China Construction Third Bureau, China Nuclear 22nd Bureau, Chengdu Rail Group and other steel processing projects, the Gute R&D team has taken another important step--Recently,China Railway Construction Bridge Bureau Jiangsu Zhangjinggao Yangtze River Bridge Project, the first fully automatic steel cage welding production line in China was officially put into operation!
The official operation of the production line marks a leap-forward breakthrough in the production of road and bridge pile foundation reinforcement cages, subverting the traditional processing mode, and is a milestone!
GUTE Machinery - Make the impossible possible! |
This fully automatic steel cage welding production line can operate only need one person, firstly the steel bar will cutting by the bad saw shear line and upset, threading and polishing aromatically, then each after threading bar will be transferred to the automatic cage welding machine,this machine has 6 welding gun to welding the inner support circle bar with the main frame bar at the same time, according to different diameter cage information, the main frame bar is different and can be adjust in system, around 10 mintues can be welding all main frame bar with support inner circle, and then the twisted rebar can start to welding on the frame, this machine has two twisted rebar or single twisted rebar choice. One 2m cage will be finished around one hour, the whole process is fully automatic.
FIRST STEP
Steel bar will be cutting, upsetting, threading and polishing by the steel bar band saw shear line
SECOND STEP

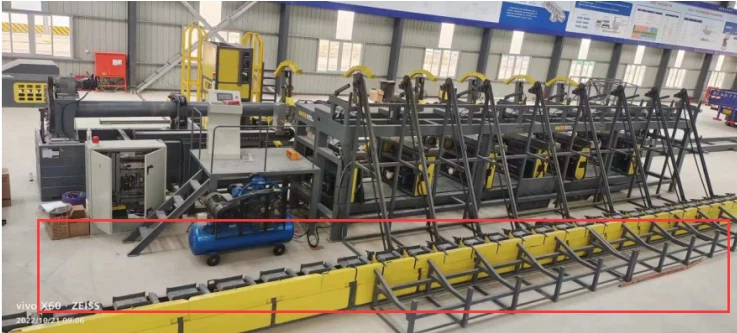

The finished threading bar will be transported to the cage welding machine automatically
THE WHOLE PRODUCTION LINE SCOPE
With the development of the times and the progress of science, in order to meet and solve the growing needs of the steel bar industry and promote the intelligent upgrade of the steel bar processing industry, GUTE Machinery has always followed the mission of "making fun, enjoying the difference, and making work easier". Constantly improve and develop itself!
The fully automated steel cage integrated production line was first launched in China even in the wolrd by GUTE Machinery. This production line breaks the traditional mode of making steel cages by rolling cage welding, and has been transformed and upgraded on the original basis. As far as the traditional rolling cage welding machine is concerned, manual feeding and welding are required, but the new production line breaks the manpower-requiring mode, and links the production and operation of steel bar conveying, shearing, threading, feeding, and welding, so as to achieve complete production and operation. Automation saves manpower and material resources to the greatest extent, saves costs and improves productivity!
