CNC VERTICAL BAR BENDING CENTER GSWK2B-16
May 28, 2025| The GSWK2B-16 CNC double head bending center fully automatic production line is a product independently developed by the company; the production line consists of 1 set of robot assembly (including 1 finished product silo), 1 (WK2B-16) CNC two-head bending center, 1 (GSL16) automatic feeding machine (including 1 feeding mechanism, 1 steel bar raw material bin mechanism, 1 electrical operation cabinet); the equipment is fully automated, using the CNC two-head bending center single machine fixed, robot grabbing and unloading; automatic steel bar separation, automatic feeding, automatic feeding, automatic alignment Cooperating with robot assembly grasping and automatic bending processing machinery, it realizes the function of fully automatic production line; it can process various commonly used graphics in building construction, and can process φ10/7, φ13/5, φ16/2 four-level threaded steel bars (HRB500) for a long time; the whole line is composed of independent equipment blocks, which can be operated and sold as a single machine, and is easy to disassemble and transport; the size of the complete set of equipment is (4.5 meters × 3 meters (+ robot 1.5 meters wide) × 1.5 meters); the products have been exported to many countries and regions, and are an important component of the unmanned construction of building construction processing plants.
Product Features
1) The equipment is a fully automated production line; it can be operated by one person;

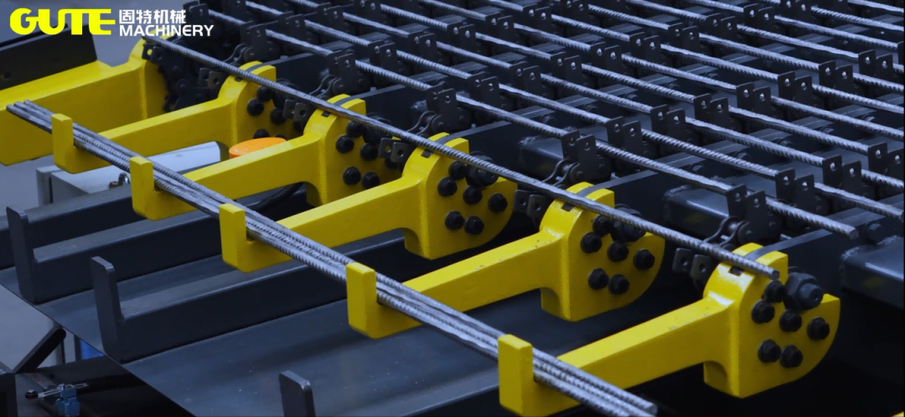

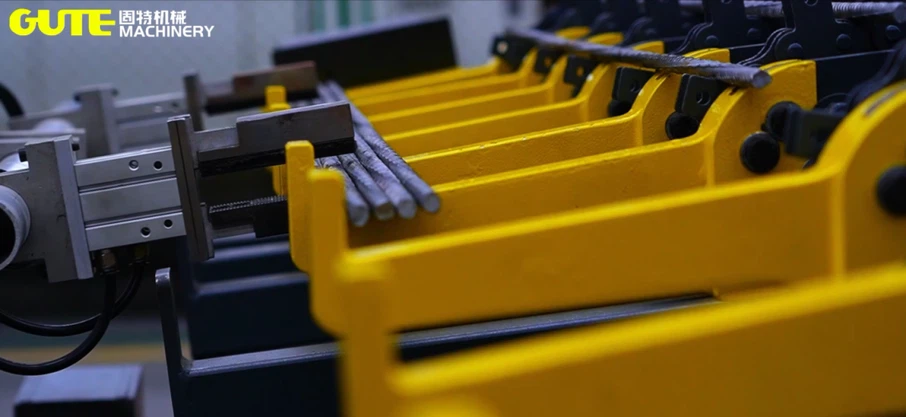

2) Production mode automatically divides, lays, loads, aligns, and bends steel bars;

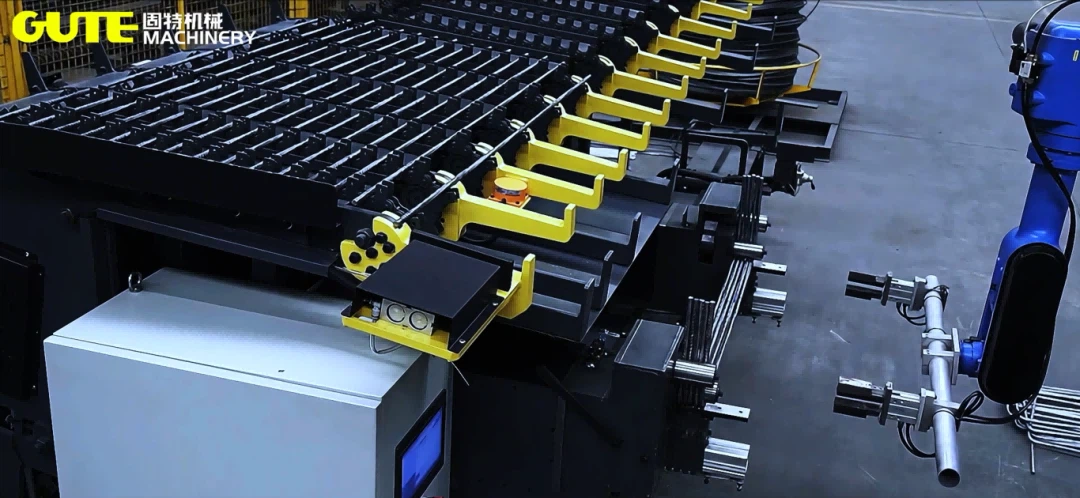

3) Intelligent robot (optional) automatically grabs, unloads and places steel bars;
Machine parameters
| Model | GSWK2B-16 |
| Rated power | 17kw |
| Longest stirrup | 3.6m |
| Min margin spacing | 120mm |
| Head movement speed | 74°/sec |
| Total weight | 3.2t |
| L*W*H | 4.5mx4.5mx1.6m |
| Steel diameter(mm) | 10-16mm |
