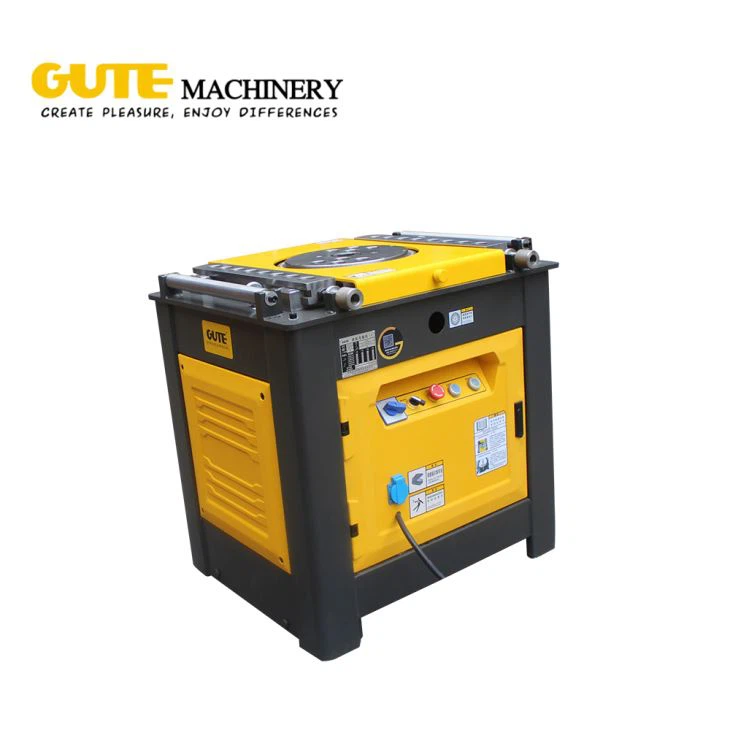

Construction Steel Bar Bending Machine

Features (GW50C-1):
Bending Diameter: 6-42mm
Motor Power: 4kw-4p
Motor Speed: 1440r/min
Control Way: manual
Working Disc Speed: 9r/min
Weight: 476kg

Product Details


PRODUCT DESCRIPTION

1. construction steel bar bending machine use a variety of specifications of the bending data, to achieve efficient, accurate operations.

2. Advanced design, solid and reliable, compact structure, easy operation, safe and durable, stable performance.

3. In particular the use of thick steel plate, high-quality rigid disc, bar iron, high-power medium-speed international motor, the quality is more stable.

4. Fast, easy to use, safe and good performance.


MOTOR TYPES

GW50C-4 (automatic)

• MOTOR TYPE: YEJ 112M-4 DUST PROOF (Brake motor)

• MOTOR POWER: 4,0 kw-4P

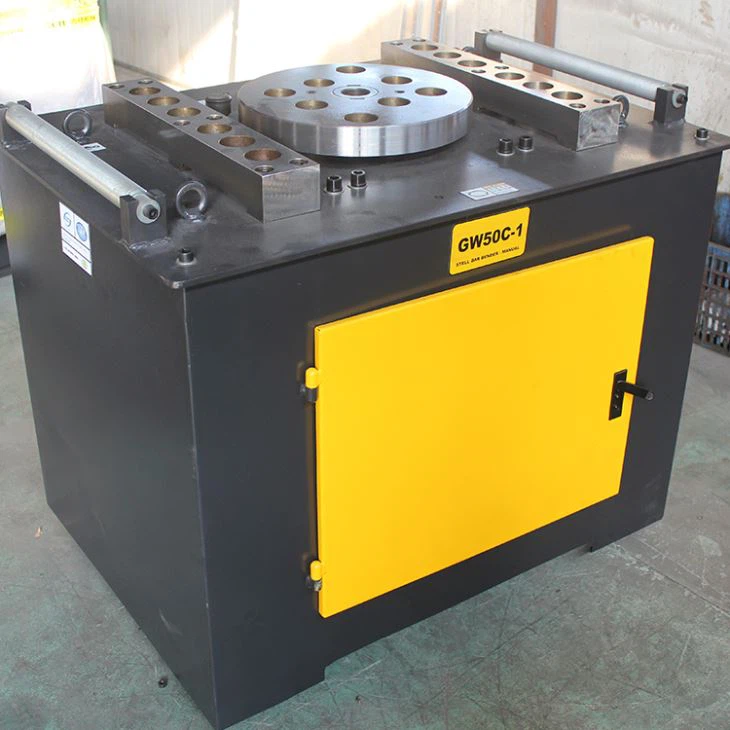

GW50C-1 (manual)

• MOTOR TYPE: Y 112M-4  DUST PROOF

• MOTOR POWER: 4,0 kw-4P

* Both kinds of motors automatic and manual have 1 year warranty. * VOLTAGE OPTIONS: any voltage from 220 to 440 / 220-380 (switchable)

FREQUENCY OPTIONS: 50Hz / 60Hz


STEEL BAR BENDER GW50C AUTOMATIC / MANUAL

Bending Capacity

6-42mm (ob ≤450N/mm2)

6-40 mm (ob ≤650N/mm2)

Operation

Automatic

Manual

Type of Motor

YEJ 112M-4 (Brake motor)

Y 112M-4

Motor Power

4 KW-4P

4 KW-4P

Motor Rotation Speed

1440 R/min

1440 R/min

Speed of Working Disk

9 R/min

9 R/min

Noise Value (1m away)

≤75dB(A)

≤75dB(A)

Weight

476 Kg.

465Kg.

Dimension

1000*800*900 mm

1000*800*900 mm

Certification

ISO 9001:2008
