Electric Bar Bender

Feature:
Bending capacity up to 40mm
3 Phase Motor provides excellent power
Excellent performance
Less noise and vibration

Product Details

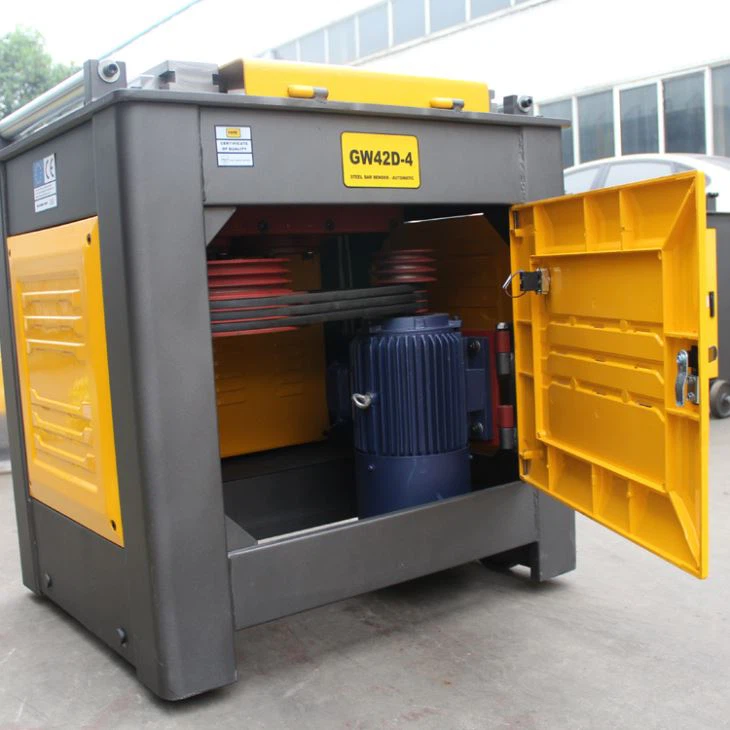

GW42 adopts the fully enclosed gear box for less distortions even under the condition of heavy loads.

Gear shaft, working disk, stop gauge,saddles,pipe head and pile head bushes made of forged high-quality.

Alloyed steel with proper heat(quenching/temering/high frequency)and 2mm thick external case to ensure high.

Performances also under heavy loads and long working life.

Two limit-switch to ensure the accuracy of the bending angle.



Features of steel bending machine:

All the parts are strictly made according to the standard issued by the ministry. The gears are treated with high frequency quench, having the functions of high load moment, stable and reliable performance.



Application range of steel bending machine:

It is mainly used to bend the round steel with 6-42mm in diameter and the screw-thread steel with 8-40mm in diameter of the II class.


MOTOR TYPES

GW40AG-4(automatic) •MOTOR TYPE: Y100L2-4  DUST PROOF (Brake motor)

• MOTOR POWER: 3,0 kw-4P

GW40AG-1 (manual)

• MOTOR TYPE: Y100L2-4  DUST PROOF

• MOTOR POWER: 3,0 kw-4P

*Both kinds of motor automatic and manual have 1 year warranty.

* VOLTAGE OPTIONS: any voltage from 220 to 440 / 220-380 (switchable)

* FREQUENCY OPTIONS: 50Hz / 60Hz


Steel Bar Bender   GW40A Automatic/Manual

Bending   Capacity

6-38mm(ob   ≤450N/mm2)

6-36 mm   (ob ≤650N/mm2)

Operation

Automatic

Manual

Type of   Motor

Y100L2-4   (Brake motor)

Y100L2-4

Motor   Power

3 KW-4P

3 KW-4P

Motor Rotation   Speed

1430   R/min

1430   R/min

Speed of   Working Disk

8-11   R/min

8-11   R/min

Noise   Value (1m away)

≤80dB(A)

≤75dB(A)

Weight

310 Kg.

305Kg.

Dimension

850×760×800mm

850×760×800mm

Certification

2006/42/EC  -  2006/95/EC
