Steel Round Bar Bending Machine

Features (SGW32E):
Bending Diameter: 6-32mm
Motor Power: 3kw-4p
Motor Speed: 1430r/min
Control Way: automatic
Working Disc Speed: 15r/min
Weight: 340kg

Product Details


PRODUCT DESCRIPTION

• SGW42D-2 adopts the fully enclosed GEAR BOX separated from the working disk for no distortions even under the condition of heavy loads and no oil leaking while lifting the machine.

• GEARS, GEAR SHAFTS, WORKING DISK, STOP GAUGE, PILE HEADS and PILE HEAD BUSHES made of high-quality alloyed steel with proper heat treatment (quenching/ tempering/ high frequency) to ensure high performances also under heavy loads and long working life.

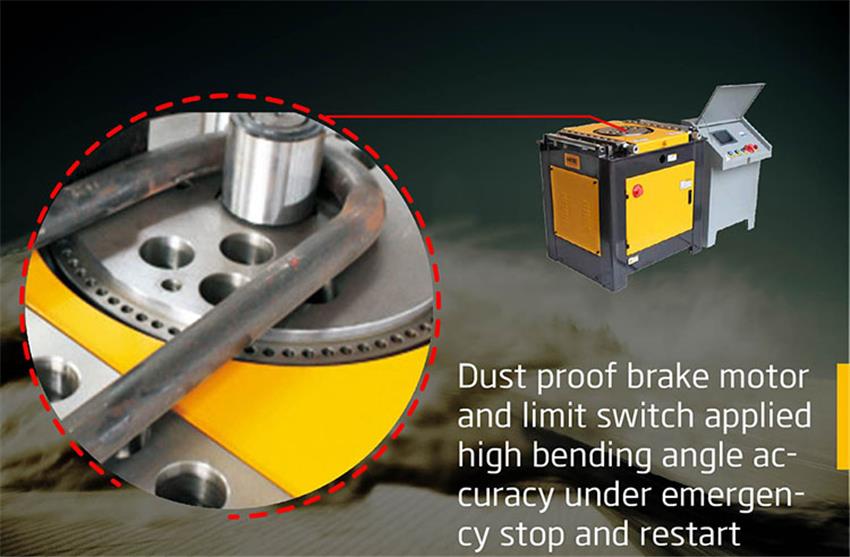

• Dust proof BRAKE MOTOR and TWO LIMIT-SWITCH to ensure the accuracy of the bending angle also after stopping and restarting.

• Insert-pin type disk and movable saddles for a precise adjusting of the bending angle.

• DIGITAL CONTROL CABINET features an ENCODER which can memorize until 4 bending settings, for an accurate adjustment and for easier operations.


MOTOR TYPE

SGW42D-2 (automatic)

• MOTOR TYPE: YEJ 100L2-4 DUST PROOF (Brake motor)

• MOTOR POWER: 3,0 kw-4P

* VOLTAGE OPTIONS: any voltage from 220 to 440 / 220-380 (switchable)

* FREQUENCY OPTIONS: 50Hz / 60Hz


DIGITAL    CONTROL STEEL BAR BENDER  SGW42D-2

Bending Capacity

6-42 mm (ob ≤450N/mm2)

6-36 mm (ob ≤650N/mm2)

Operation

DIGITAL CONTROL  (brake motor)

Type of Motor

YEJ 100L2-4 (Brake motor)

Motor Power

3 KW-4P

Motor Rotation Speed

1420 R/min

Speed of Working Disk

12 R/min

Noise Value (1m away)

≤80dB(A)

Weight

365 Kg. + 25 Kg.

Dimension

810*760*860 mm

Certification

ISO 9001:2008
