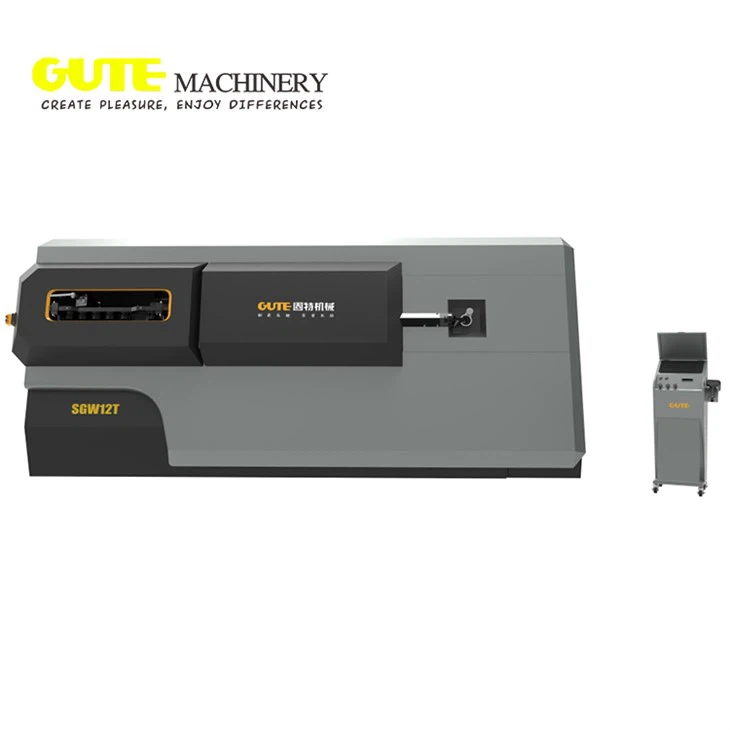

CNC STEEL BAR STIRRUP BENDER SGW12T
Technical Data: Introduce: ▲1600 stirrups production per for hour and each batch can be yield up to 8tons. ▲Automatic straightening system, better straightening effect ▲1 years free warranty service. ▲The electric components are of famous brands such as Schneider and Chint the power is provided...
- Product Introduction
Technical Data:
|
TENSILE STRENGTH |
Kg/mm2 45 |
Kg/mm2 65 |
|
|
|
SINGLE WIRE BENDING |
5-13 mm |
5-12mm |
|
|
DOUBLE WIRE BENDING |
5-10 mm |
5-8 mm |
|
|
OPERATION |
Automatic wire feeding system(CNC) |
|
|
|
MAX. BENDING ANGLE |
180° |
|
|
|
MAX. LENGTH OF STIRRUP SIDE |
1000 mm |
|
|
|
MIN. LENGTH OF STIRRUP SIDE |
90 mm |
|
|
|
MAX. BENDING SPEED |
1050°/sec |
|
|
|
MAX. TRACTION SPEED |
75-100 m/min |
|
|
|
BENDING DIRECTION |
Bi-direction |
|
|
|
TRACTION SERVICE MOTOR POWER |
22KW |
|
|
|
BENDING SERVICE MOTOR POWER |
7.5KW |
|
|
|
TOTAL POWER |
42KW |
|
|
|
AERAGE ELECTRIC CONSUMPTION |
6 KW/H |
|
|
|
L×W×H |
5250×1760×2170mm |
|
|
|
WEIGHT |
5.3T |
Introduce:
▲1600 stirrups production per for hour and each batch can be yield up to 8tons.
▲Automatic straightening system, better straightening effect
▲1 years free warranty service.
▲The electric components are of famous brands such as Schneider and Chint the power is provided by servo motor, with high efficiency and accuracy Support multi - language interactive interface, simple operation.
▲ Draw the steel coil in a straight line and bending with cutting.
▲sheet metal panel, observing the door with a standard 5mm, long service life, more wear-resisting.
▲IKO bearings imported from Japan are used in key parts to ensure service life.
▲Straightening wheel made of alloy steel service life is longer.
Function:
▲This machine can process horseshoes, stirrup, circles, hooks H-shaped steel, long straight bar and so on hundreds of shapes.
▲Process §5-13mm single wires and §5-10mm double wires for deformed steel coil.
COMPONENT PARTS:
Automatic pre-straightening mechanism
▲The pre-adjusting mechanism is composed of 16 pre-adjusting wheels, which are divided into upper and lower two groups to be adjusted and controlled by a servo motor. The pre-adjusting wheel is double-slotted and can be double-wired.
▲The preset wheel is made of forging alloy tool steel, which is resistant to wear and impact.
There is also a feeding device, which is convenient for the first time.
Automatic straightening mechanism
▲Automatically complete the straightening of rebar and round steel
▲The straightening mechanism is composed of 18 straightening wheels, which are divided into two upper and lower groups to be adjusted and controlled by a servo motor. The straightening wheels are flat grooves and can be double-line straightened.
Pay-Off
▲Each machine with 2 pcs pay-off.
▲Each pay-off Maximum carrying capacity 2,500KG bar.
▲Be able to dis-assemble and easy to transport.
▲You can customize the pay-off with brake.
Automatic collector
▲Automatic collection of finished stirrups.
▲The collection quantity can be set.Easy to pack finished products.
Easy to pack finished products
Electrical cabinet:
▲Equipped with 22KW high-power servo motor to ensure the smooth operation of traction
Pneumatic element
▲pneumatic components adopt famous brand Airtac of Taiwan , ensure the service life
▲Split thickening blade design, thickness up to 40mm, easy to use for many times
▲The adoptionofmulti-splittypebladewhichensures a doublelifetime co-mpared with normal one piece blade
Site Layout
Site layout
Main Components
|
NO |
Name |
Brand |
|
1 |
Electrical components |
Schneider, Omron |
|
2 |
PLC |
Delta |
|
3 |
Air compressor |
Jaguar |
|
4 |
Round frame |
Load 2.5 tons |
|
5 |
Cylinder and components |
AirTAC |
|
6 |
Bending bearing |
IKO |
|
7 |
Traction, bending |
Servo motor EURA |
|
8 |
touch screen |
Kinco |
|
9 |
Reducer |
Great Wall |
SCOPE OF SUPPLY：
|
1 |
Wire pay-off (2.5 tons capacity) |
2 PCS |
||
|
2 |
Central machine |
Wire straightening units |
2 UNITS |
|
|
Wire feeding unit |
1 UNIT |
|||
|
Wire bending unit |
1 UNIT |
|||
|
Wire cutting unit |
1 UNIT |
|||
|
Electric cabinet |
1 UNIT |
|||
|
Air compressor |
1 UNIT |
|||
|
3 |
ontrol console |
1 UNIT |
||
|
4 |
Spare parts |
1 SET |
||
|
5 |
Tools |
1 SET |
||
|
6 |
User's guide |
1 SET |
||
|
7 |
Auto-material collection device (Choice) |
1 SET |
Differences Compare Other Models
|
SGW12T |
SGW12D-1 |
SGW12D-2 |
SGW12A-1 |
SGW12D-4 |
SGW14D-1 |
SGW16D |
|
|
Automatic straightening |
✔ |
X |
X |
X |
X |
X |
X |
|
Max.Bending Single Wire |
12mm |
12mm |
12mm |
12mm |
12mm |
13mm |
16mm |
|
Max.Bending Double Wire |
10 |
10mm |
8mm |
8mm |
10mm |
10mm |
12mm |
|
Min.Bending Length |
90mm |
90mm |
90mm |
140mm |
90mm |
90mm |
90mm |
|
Max.Bending Length (Hoop Bending) |
1m |
1m |
1m |
1m |
10m |
1m |
10m |
|
Bending Direction
|
Bi-Direction |
Bi-Direction |
Bi-Direction |
Single-Direction |
Bi-Direction |
Bi-Direction |
Bi-Direction |
|
Machine Total Power |
42kw |
33KW |
31KW |
25.5KW |
48KW |
45KW |
65KW |
|
Electric Parts Brand |
Schneider |
Schneider |
Chinese CHIT |
Chinese CHIT |
Schneider |
Schneider |
Schneider |
|
Pay-off Capacity |
2.5T |
2.5T |
2.5T |
2.5T |
2.5T |
2.5T |
3.0T |
|
Machine Weight |
5300kg |
3500Kg |
3300Kg |
1500Kg |
5700Kg |
3600Kg |
5500Kg |
