CNC VERTICAL BAR BENDING CENTER LSW-32A
Technical Data: Introduce: ▲Φ28 threaded steel bars are bent forward and reverse to meet the needs of more customers. ▲Customized molding wheel can bend complex steel bars. ▲The longest bend is 10.8 meters, which is practical. ▲Computer programming, which can store hundreds of graphics. ▲Bending...
- Product Introduction
Technical Data:
rated power | 16KW | |||||||||
Gas source working pressure | 0.8MPa | |||||||||
Maximum bending angle | -120°~180° | |||||||||
Longest stirrup | 10.8m | |||||||||
Minimum margin spacing | 740mm | |||||||||
Head movement speed | 0.1-1m/sec | |||||||||
Fastest bending speed | 72°/sec | |||||||||
total weight | 3.9t | |||||||||
Average power consumption | 5KW/H | |||||||||
L*W*H | 12m×2m×1.4m | |||||||||
Steel diameter | 10 | 12 | 14 | 16 | 20 | 22 | 25 | 28 | ||
Number of bends | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 1 | ||
Mobile control mode | servo motor | |||||||||
Bend control | servo motor | |||||||||
Mode of action | pneumatic | |||||||||
Introduce:
▲Φ28 threaded steel bars are bent forward and reverse to meet the needs of more customers.
▲Customized molding wheel can bend complex steel bars.
▲The longest bend is 10.8 meters, which is practical.
▲Computer programming, which can store hundreds of graphics.
▲Bending and walking are all controlled by servo motor, with precise bending angle and precise forming dimensions.
▲Touch screen console, easy to operate, automatic bending, rapid prototyping.
▲The only all-steel welded box in the industry, strong, durable and non-deformable for life.
▲Flexible split connection mechanism, convenient for transportation and transfer.
▲Air compressor adopts Jaguar brand, and the cylinder adopts Taiwan AirTAC customer quality is more guaranteed.
Function:
▲This machine can process horseshoes, big stirrup,big hooks etc.
▲ Process §5-28mm straight rebar.
Finished bar
COMPONENT PARTS:
Automatic Bending Head
▲The box body is welded with all-steel parts, which has high strength and durability, and at the same time ensures the service life of the thread on the box; then the forged steel gears are added to increase the service life of the product.
Electrical parts
▲The bending and walking are all driven by servo motor, the bending angle is precise, and the forming size is more precise.
▲pneumatic components adopt famous brand Airtac of Taiwan , ensure the service life
▲Split thickening blade design, thickness up to 40mm, easy to use for many times
Site Layout
Main Components
Serial number | name | Brand | model |
1 | PLC | Delta | DVP-64EH00T3 |
2 | Air compressor | Jaguar | E T -65 |

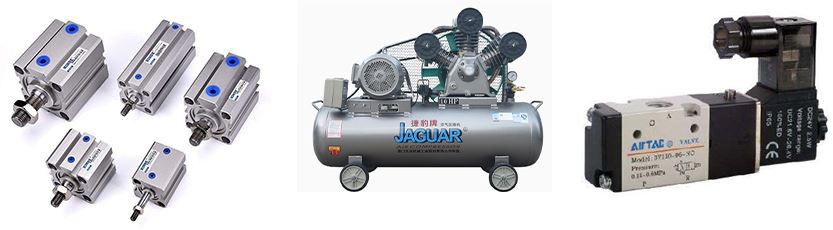

3 | Cylinder and components | AirTAC | 4V310-10B DC24V , SC63*100, SC100*50... |
4 | Bearing | LYC bearing, HRB bearing | 6007RZ, 6214RZ, 6215RZ... |
5 | Walking and bending servo motor | EURA | SMMA-202F67EDJ1, SMMB-432F6AED |
6 | Reducer | Great Wall | BWD2-43-1.5-C2 , GKAZ37-8.91-M1 GRF57-13.95-M1-φ200 |
7 | Server Driver | EURA | SD20-G302T3M3FOD5B6N, SD20-G552T3M3FOD5B6N |
8 | Resistance | PXLG | Aluminum shell resistance 1000W50 Europe |
9 | Touch screen | Kinco | MT4532T |
10 | Relay | Omron | MY2NGS-DC24V |
11 | Power Supplier | Taiwan Mean Well | ELG-150-24A |
12 | Double pedal | Xinling | LFS-702\2 |
13 | The electromagnetic valve | AirTAC | 4V310-10B DC24V |
14 | Air source processing original | AirTAC | GFR40015-F1 |
15 | Contactor | Chnt | CJX2-6511 , CJX2-1810 |
16 | Transformer | Chnt | 500V/A, NDK (BK)-500 |
17 | Limit switch | Xinling | ME-8108 |
18 | Proximity switch | Feiling | FA 12-4D A |
19 | Box | Gute made | All steel assembly welding |
20 | Rack | Chain transfer | Drive by BWD2-43-1.5-C2 |
Differences Compare Other Models
LSW32 | LSW32A | LSW32B | LSW28A | |
Automatic feeding device | YES | NO | NO | NO |
Total Power | 18KW | 16KW | 18KW | 11KW |
Max. Bending Dia. | 32mm | 28mm | 32mm | 28mm |
Min. Bending Length | 740mm | 740mm | 390mm | 500mm |
Machine Main frame | Solid | Solid | Empty | Empty |
Machine Weight | 4.8T | 3.9T | 4T | 2.4T |
Special Bending Design | Standard | Standard |
| Standard |
