Rebar Shear Machine

Rebar Shear Machine

Features (SGS150):
Cutting Frequency: ≤22n/min
Blade Width: 300mm
Max. Cutting Length: 12m
Min. Cutting Length: 1.5m
Weight: 6.8t

Product Details


1. The production line adopts international leading technology, PLC control, humanized electric control system, easy adjustment and operation, and has international advanced level, leading in the country.

2. The choice of each single machine is reasonable and rational, so that the operator has a wide field of vision in the work process and is easy to see the whole process of sawing.

3. The material storage rack is stored in large tonnage. In order to improve efficiency, the next batch can be carried out at the end of the last cycle, so as to save cycle time.

4. A single disc cutter is used to cut off the structure of the steel bar, the sawing speed is fast, the saw slot is narrow, the sawing width of the large size, the sawing yield is high, and the sawing capacity is large. It can achieve high quality sawing; the maximum diameter of sawing steel is 50mm.

5. The steel bar measuring mechanism is driven by a servo motor, and the length of the steel bar is stepless and adjustable.

6. Double side turnover and feeding, simple and reliable.

7. The sawing, conveying, turning, transferring, covering and polishing of the steel bar are automatically completed by machine without manpower. The functions of automatic wire laying, automatic grinding and automatic storage are realized, and the efficiency is greatly improved.

8. The main engine of the rolling wire is used in the domestic advanced host head, which can automatically clamp, feed, shrink and roll wire, and use advanced technology to complete the functions of the steel bar conveying, turning, locating and transferring, and finally automatically rolling and grinding.

9. The roller of steel bar is made of wear-resistant V roller, which achieves the characteristics of wear resistance, noise reduction and long service life.

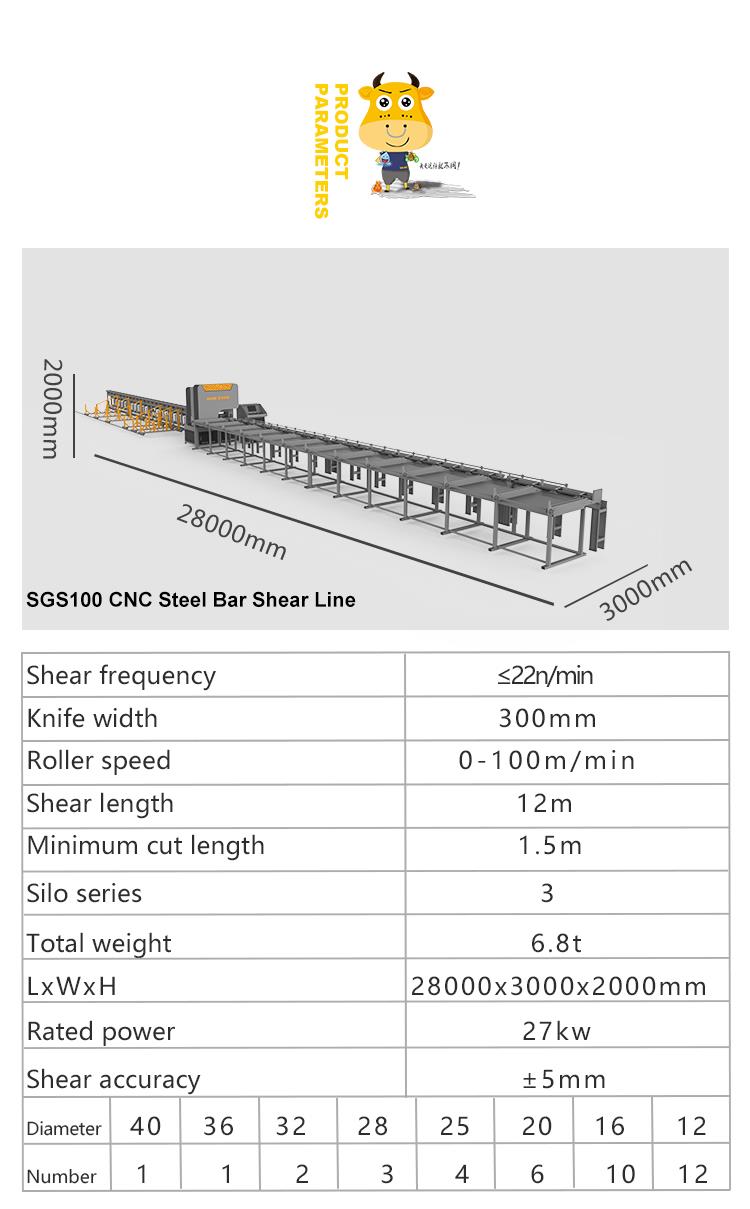

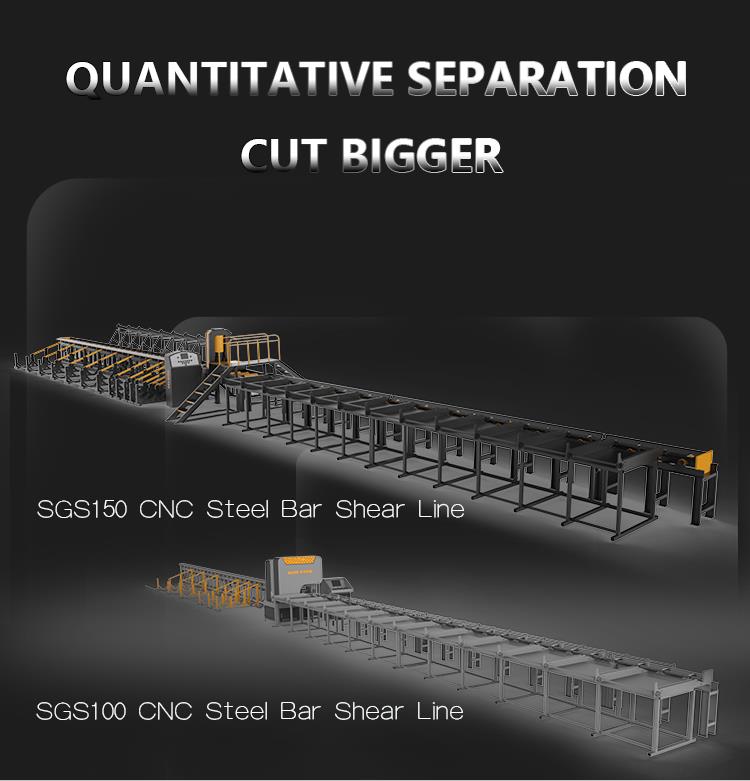

CNC Steel Bar Shear   Line










CUTTING FREQUENCY

≤22N/MIN

BIN SERIES

3*1







BLADE WIDTH (MM)

300MM

RATED POWER

25.5KW







ROLLER SPEED (M/MIN)

<50M/MIN

WEIGHT

6.8T







MAX CUTTING LENGTH (M)

12M

L*W*H

28000*3000*2000







MIN. CUTTING LENGTH (M)

1.5M


DIA. MM)

10

12

16

20

22




ROOT NUMBERS

10

8

6

4

3
