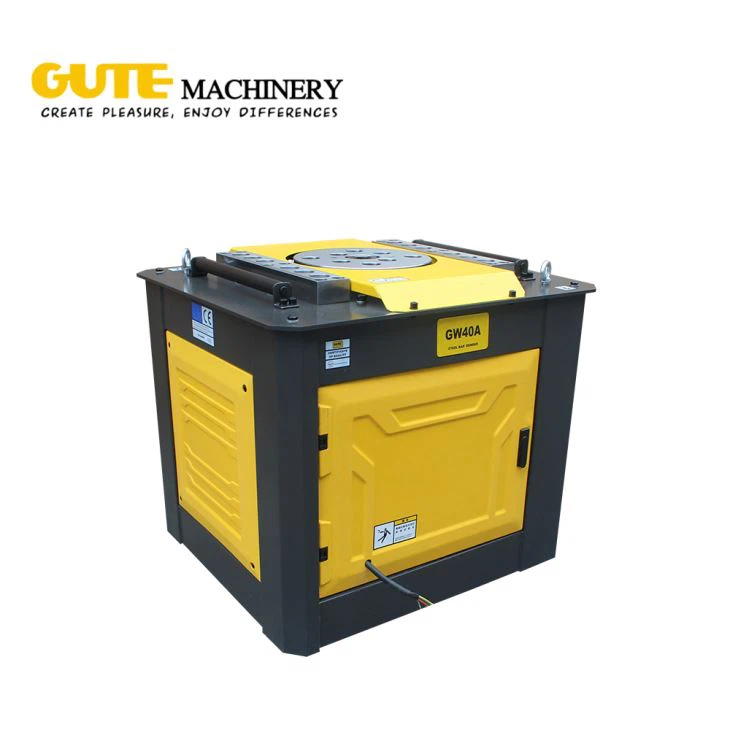

Metal Bar Bending Machine

Features (GW42D-1):
Bending Diameter: 6-38mm
Motor Power: 3kw-4p
Motor Speed: 1430r/min
Control Way: manual
Working Disc Speed: 8-11r/min
Weight: 310kg

Product Details


PRODUCT DESCRIPTION

Bar bending machines offered by us are designed to bend the bar up to 6mm to 38mm. These bar bending machine is served in the capacity of 3kW/4HP Power. These machines are high on demand for Construction Job Site applications. The range of bar bending machines we offer renders smooth functioning for longer time period. In addition, the high performance of our reinforced bar bending machine with working rotation speed.


Steel Bar Bender GW40A Automatic/Manual

Bending Capacity

6-38mm(ob ≤450N/mm2)

6-36 mm (ob ≤650N/mm2)

Operation

Automatic

Manual

Type of Motor

Y100L2-4 (Brake motor)

Y100L2-4

Motor Power

3 KW-4P

3 KW-4P

Motor Rotation Speed

1430 R/min

1430 R/min

Speed of Working Disk

8-11 R/min

8-11 R/min

Noise Value (1m away)

≤80dB(A)

≤75dB(A)

Weight

310 Kg.

305Kg.

Dimension

850×760×800mm

850×760×800mm

Certification

2006/42/EC - 2006/95/EC
