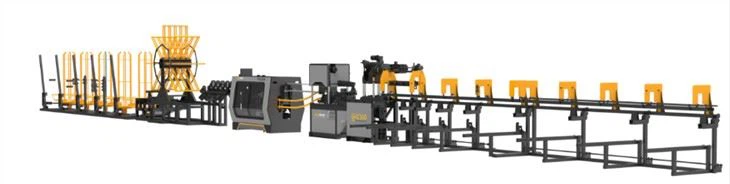

Automatic Steel Rebar Truss Resistance Welder

Three groups of anti-torsion + automatic shaping to ensure the forming effect of the truss; The distance between wave ribs and crests is 190mm to 210mm, and the precision can be adjusted to 1mm;

Send Inquiry

Product Introduction

Technical Data:

Name	Parameter
Rated power of upper suspension bar welding	100KWA (intermittent work)
Rated welding power of lower suspension bar	63KWA*2 (intermittent work)
Shearing motor	7.5KW*2
Traction motor	16KW (servo)
Pre-adjusted traction mode	frequency conversion
Power phase number	Three-phase four-wire
power supply	380V 50HZ
Air pressure	0.6-0.8 Mpa
Finished product height	Straight foot 70-300mm Folded foot 70-250mm
Peak spacing	190-210mm (adjustable)
Diameter of upper and lower chord bars	6-12mm
Wave rib	4.5-8mm (round steel)
Maximum welding speed	12m/min≤The actual production speed is determined by the truss specifications
Length of finished truss	2m-12m
Number of pay-off racks	5
Bottom claw expansion method	pneumatic
Cutting method	Mechanical shear
way to control	PLC+touch screen
PLC	Siemens

Introduce:

u The automatic stacking function of the receiving rack is more practical;

u each function modular, maintenance convenient transportation;

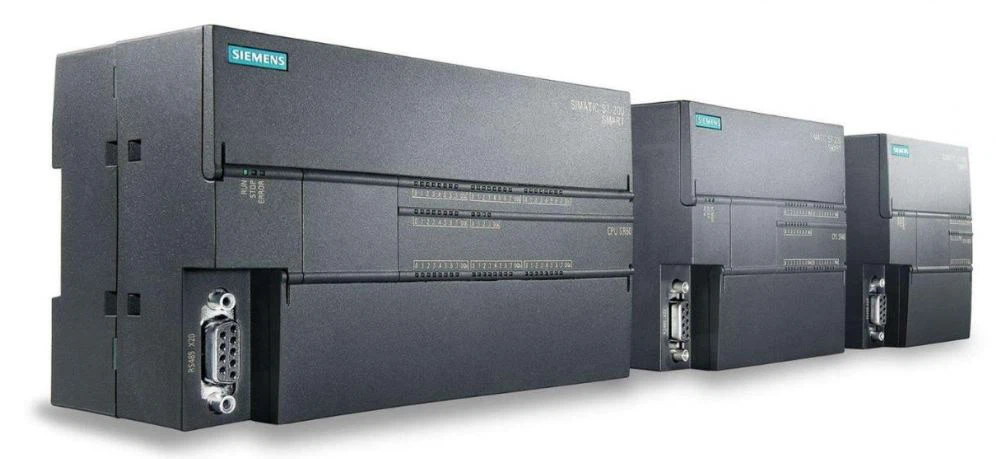

u PLC adopts Siemens, with good stability;

u The power adopts 16KW servo motor, with high precision and strong power;

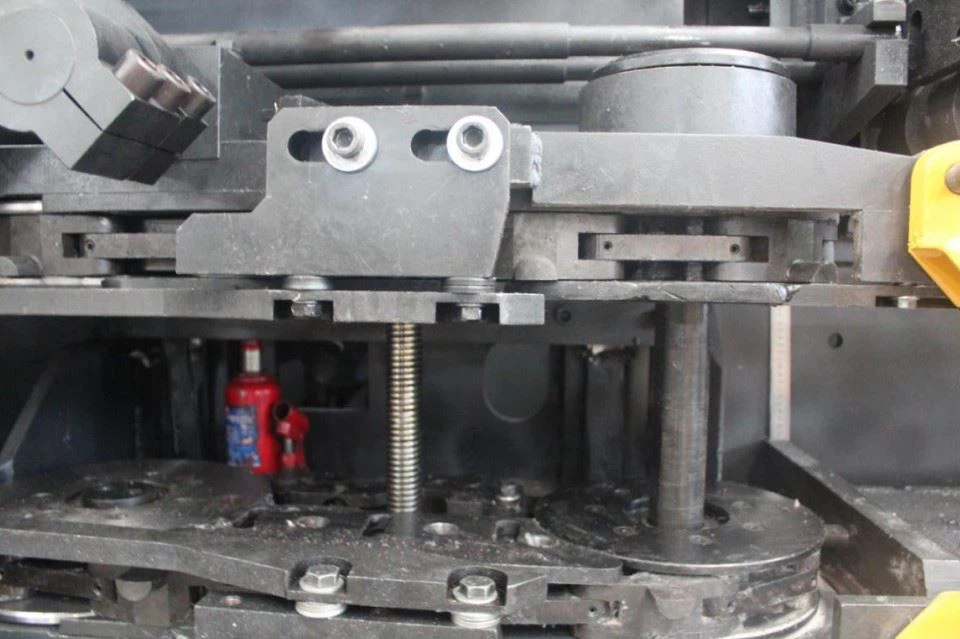

u The all-steel parts of the angle mechanism are assembled by welding, and the wear-resistant part is made of replaceable die steel, which has a longer service life;

u IKO bearings imported from Japan are used in key parts to ensure service life;

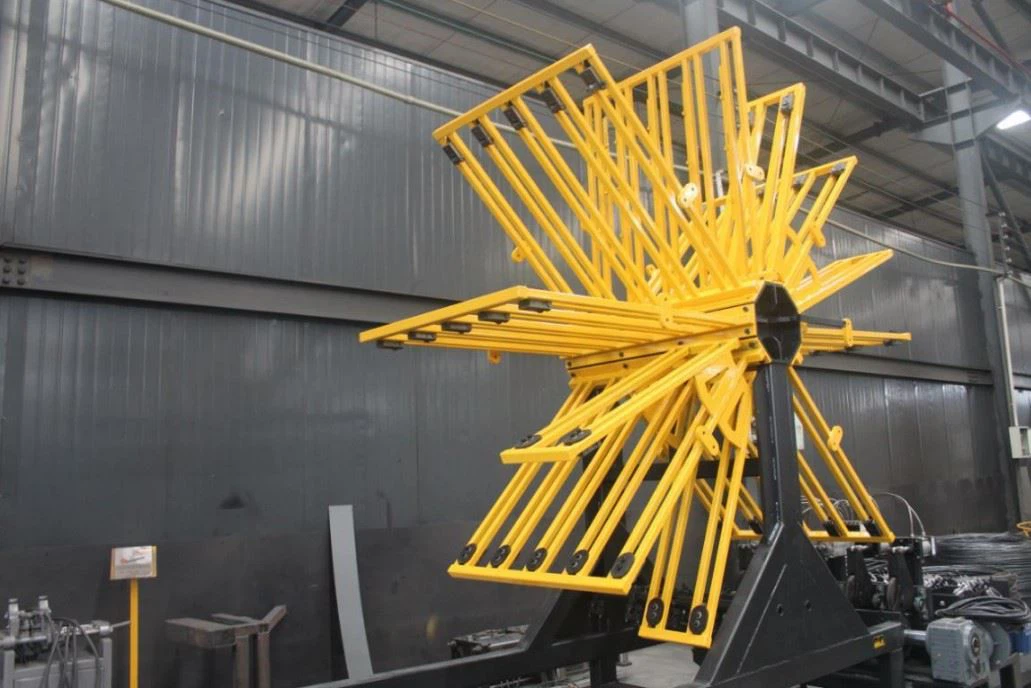

u Adjustable pay-off stand with brake, the steel bar feeds more smoothly;
