NEW UPDATE CNC DOUBLE HEAD BENDER WS36
Sep 02, 2024| NEW UPDATE CNC DOUBLE HEAD BENDER WS36
φ32 large arc one-time molding, a variety of molds can be customized freely

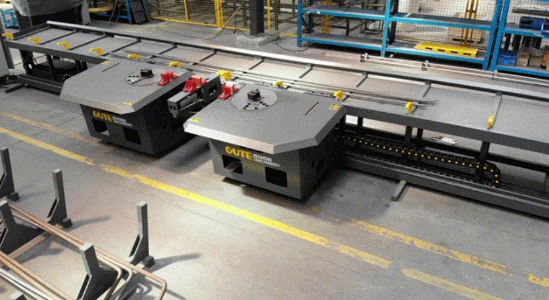

The WS-36 horizontal bevel bending center consists of two horizontal bending heads, two 4.5-meter flat silo racks, a steel bar clamp mechanism, an integrated electrical control operation cabinet, a combined storage silo assembly, and a foot switch; it is widely used in railways, highways, bridges, large steel bar processing plants and other fields; it is mainly used for the forming and processing of large-diameter, high-strength straight threaded steel bars, and has the characteristics of less auxiliary labor, fast processing speed, high precision, high efficiency, and long service life.
1. Long-time bending 12-32mm 500 grade rebar
WS-36 horizontal inclined bending center can process φ12-φ32㎜ four-grade threaded steel bars for a long time. It can meet the requirements of steel bar bending at various angles.
|
Rebar diameter |
12 |
14 |
16 |
18 |
20 |
22 |
25 |
28 |
32 |
|
|
Rebar grade |
HRB400 |
6 |
6 |
4 |
3 |
2 |
2 |
1 |
1 |
1 |
| Rebar grade |
HRB500 |
5 |
5 |
3 |
2 |
1 |
1 |
1 |
1 |
1 |
2. large arc bending one-time molding,
For large arc steel bars of box beams and T beams, molds are customized according to different curvatures to meet the needs of more scenarios. The equipment also has the functions of positive and negative bending of large arc steel bars.
3. Multiple molds, easy replacement
The pin-type working disc is adopted, which is easy and convenient to replace. A variety of molds meet the conventional graphics such as 90°/135°/180°, and large R molds can be freely customized according to the arc diameter mold.
