Stirrup Bender Machine

Feature
Single wire: 5-13mm
Double deformed wire: 5-8mm
Double round wire: 5-10mm 1600 stirrup production per hour More than 500 hundred of graphic in storage

Product Details


Introduction of rebar stirrup bender machine, steel round bar bending machine

This machine widely use in steel processing molding on the construction . hydraulic control system .About double pedal control, high safety coefficient, good quality, high efficiency, praised by the great majority of users, is the machine industry quality product.


Features :
1,This machine have multifunction .it can straightening , bending and cutting

2.It adopt aptitude control . Can processing many size and specification  shape . For example :square , rectangle , rhombus ,polygon and so on .

3.High efficiency . One need one worker to operate it . Equivalent 20-30 worker labor

4.Save raw material. It is continuous forming. Nearly no rebar loss.

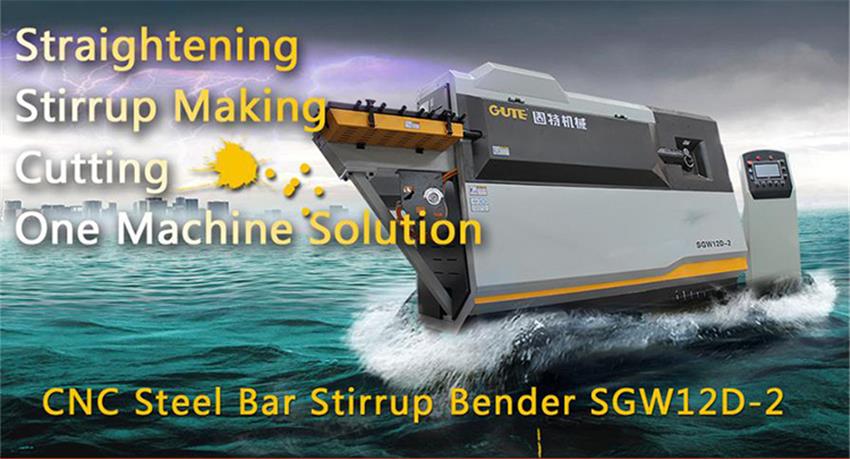

CNC STEEL BAR STIRRUP BENDER SGW12D-2

TENSILE STRENGTH

Kg/mm245

Kg/mm265

SINGLE WIRE BENDING

5-13 mm

5-11 mm

DOUBLE WIRE BENDING

5-10 mm

5-8 mm

OPERATION

Automatic wire feeding system(CNC)


MAX. BENDING ANGLE

180°


MAX. LENGTH OF STIRRUP SIDE

900 mm


MIN. LENGTH OF STIRRUP SIDE

90 mm


MAX. BENDING SPEED

1050°/sec


MAX. TRACTION SPEED

75-100 m/min


TRACTION SERVICE MOTOR POWER

13KW


BENDING SERVICE MOTOR POWER

7KW
