Rebar Cnc Bending Machine

CNC rebar bender used for bending hoop. The machine uses high-quality, fast, energy-saving steel construction process, ensuring efficiency and effective, but also provide the premise for the low price. The size of the product is accurate, It’s easy to operate. Straightening system...

Product Details


CNC rebar bender used for bending hoop. The machine uses high-quality, fast, energy-saving steel construction process, ensuring efficiency and effective, but also provide the premise for the low price. The size of the product is accurate, It’s easy to operate.

Straightening system characteristic:

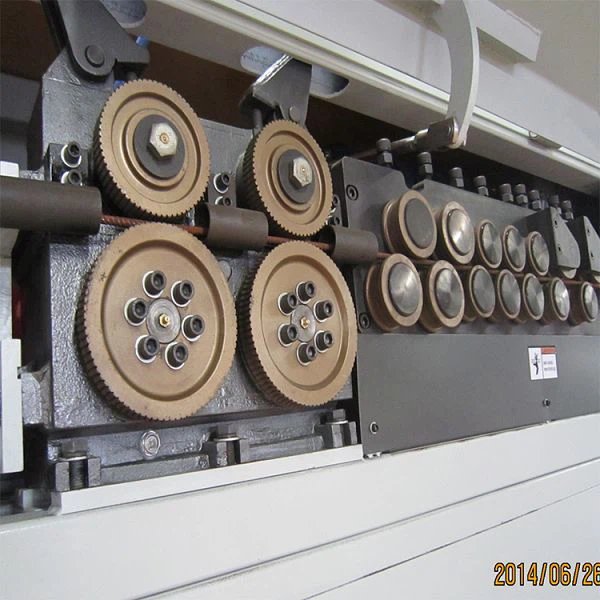

Automatic CNC STEEL BAR STIRRUP BENDER machine is controlled by the PLC numerical control system,formed by horizontal and vertical adjustable straightening wheel ,which combine with 4 traction wheel to ensure the best straightening precision.


CNC STEEL BAR   STIRRUP BENDER SGW12D-

TENSILE STRENGTH

Kg/mm245

Kg/mm265

SINGLE WIRE BENDING

6-12 mm

5-11 mm

DOUBLE WIRE BENDING

6-10 mm

5-8 mm

OPERATION

Automatic wire feeding system(CNC)

MAX. BENDING ANGLE

180°

MAX. LENGTH OF STIRRUP SIDE

900 mm

MIN. LENGTH OF STIRRUP SIDE

90 mm

MAX. BENDING SPEED

1050°/sec

MAX. TRACTION SPEED

75-100 m/min

TRACTION SERVICE MOTOR POWER

13KW

BENDING SERVICE MOTOR POWER

7KW
