Cnc Stirrup Bender Machine

Computer numerical control automatic steel bending hoop machine from reinforced by full high intelligent integration control and feeding, to scale, straightening, bending forming, cutting various process single one live, to direct production of various size specifications of the stirrup, fully...

Product Details


Computer numerical control automatic steel bending hoop machine from reinforced by full high intelligent integration control and feeding, to scale, straightening, bending forming, cutting various process single one live, to direct production of various size specifications of the stirrup, fully meet the design requirements.


Features:

1.This automatic CNC stirrup bending machine used for bending hoop.

2.The automatic stirrup bending machine uses high-quality, fast, energy-saving steel construction process, ensuring efficiency and effective, but also provides premise

3.The size of the product is accurate. It's easy to operate.

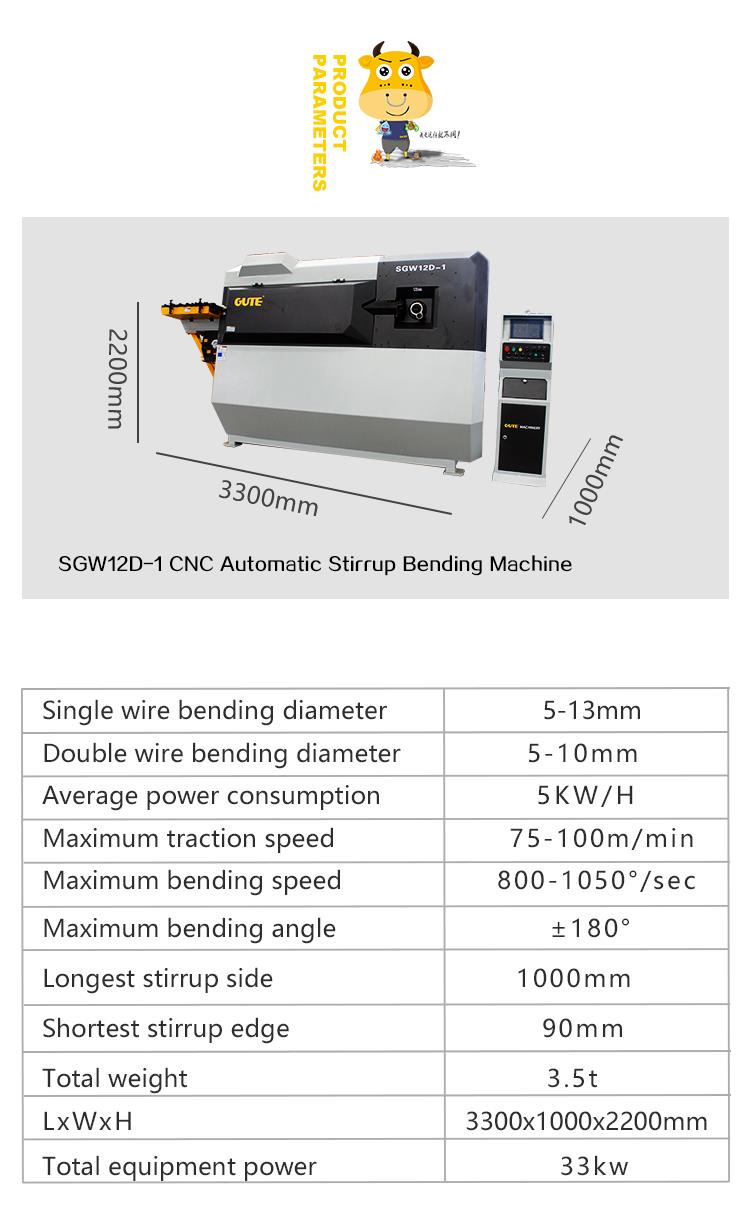

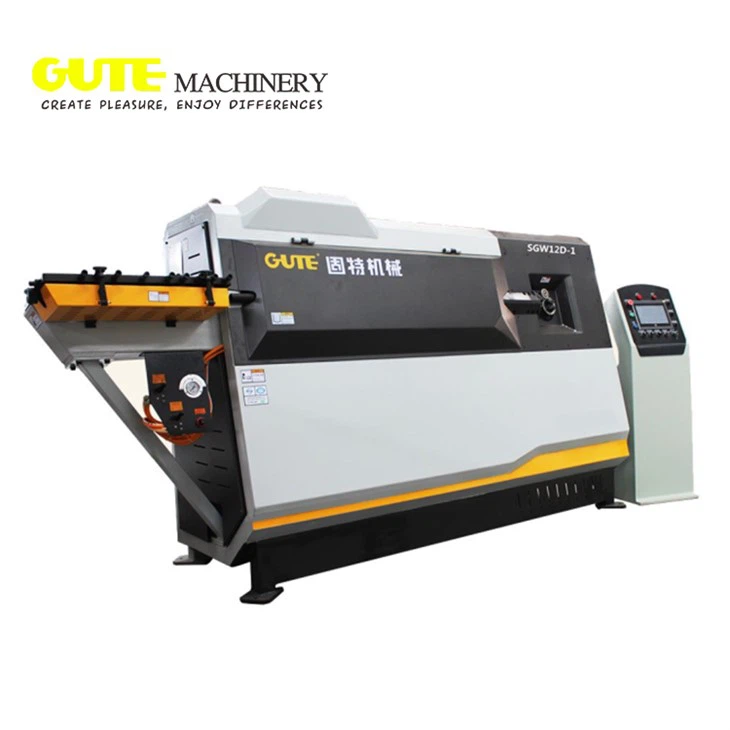

CNC STEEL BAR   STIRRUP BENDER SGW12D-1

TENSILE STRENGTH

Kg/mm245

Kg/mm265

SINGLE WIRE BENDING

6-12 mm

5-11 mm

DOUBLE WIRE BENDING

6-10 mm

5-8 mm

OPERATION

Automatic wire feeding system(CNC)

MAX. BENDING ANGLE

180°

MAX. LENGTH OF STIRRUP SIDE

900 mm

MIN. LENGTH OF STIRRUP SIDE

90 mm

MAX. BENDING SPEED

1050°/sec

MAX. TRACTION SPEED

75-100 m/min

TRACTION SERVICE MOTOR POWER

13KW

BENDING SERVICE MOTOR POWER

7KW
