Cnc Bending Machine

Main features: Factory direct sale CNC automatic stirrup bender machines is suitable for producing round steel bar and deformed bar in many shapes such as square,triangle,rectangle,five-pointed star,H shape and so on. It is controlled by servo motor and it has multi-functions of elastic,...

Product Details


Main features:

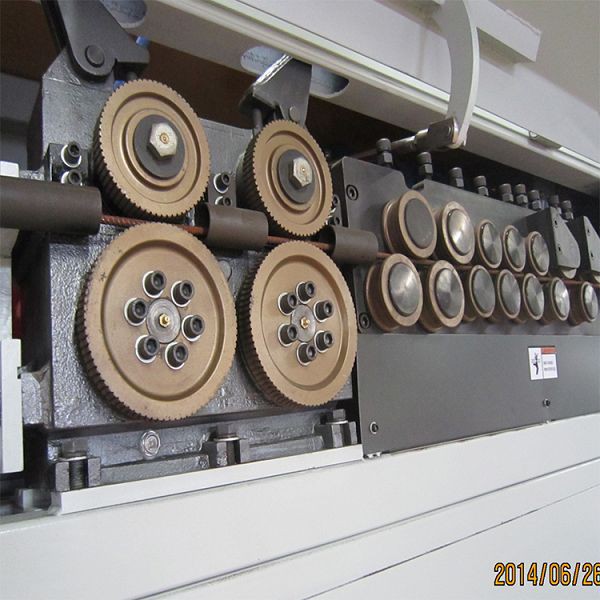

Factory direct sale CNC automatic stirrup bender machines is suitable for producing round steel bar and deformed bar in many shapes such as square,triangle,rectangle,five-pointed star,H shape and so on. It is controlled by servo motor and it has multi-functions of elastic, straighten, stirrup bending, cutting ...

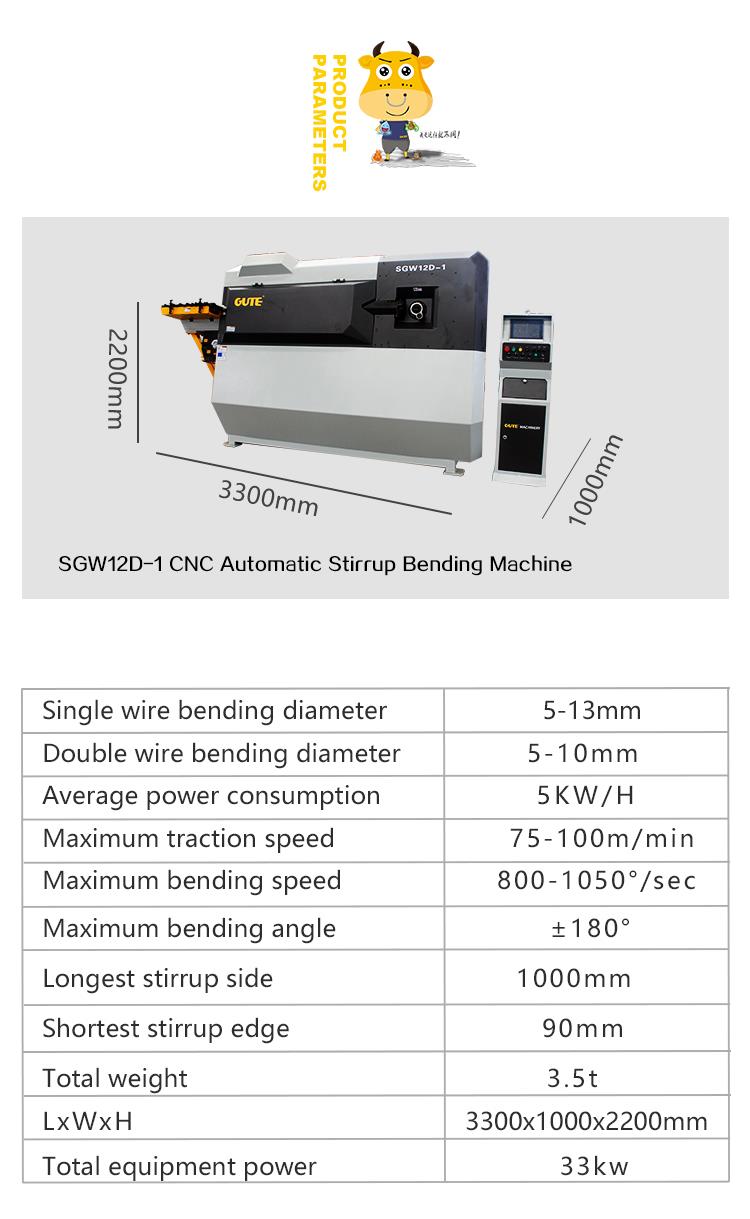

CNC STEEL BAR   STIRRUP BENDER SGW12D-1

TENSILE STRENGTH

Kg/mm245

Kg/mm265

SINGLE WIRE BENDING

6-12 mm

5-11 mm

DOUBLE WIRE BENDING

6-10 mm

5-8 mm

OPERATION

Automatic wire feeding system(CNC)

MAX. BENDING ANGLE

180°

MAX. LENGTH OF STIRRUP SIDE

900 mm

MIN. LENGTH OF STIRRUP SIDE

90 mm

MAX. BENDING SPEED

1050°/sec

MAX. TRACTION SPEED

75-100 m/min

TRACTION SERVICE MOTOR POWER

13KW

BENDING SERVICE MOTOR POWER

7KW
