Steel Cutting Machine

Feature:
Have capacity to cut bars of diameter up to 50mm
Cast iron main body frame provides rigidness
Facilitated with well lubricated gears that leads to smooth functioning
3 phase motor provides excellent power while cutting Replaceable blades

Product Details


Rebar cutting machine can be applied to the normal carbon steel rod, hot rolled steel, deformed bar, flat steel, square steel and angle steel in machine processing and construction projects.


Advantages:

1.Adopt high quality copper wire motor, enhanced machine rack, compact structure,solid and reliable.

2.2.Good lubricating property, it could continuous work two months after adding 8kgs gear oil.

3.Less functional loss compared with same type cutting machine, load power can largely reduced.

Steel bar cutter machine can be used efficiently to cut ordinary carbon steel,hot rolled steel,screw bar ,flat bar ,square bar and angle steel bar which are widely used in machining and construction project.

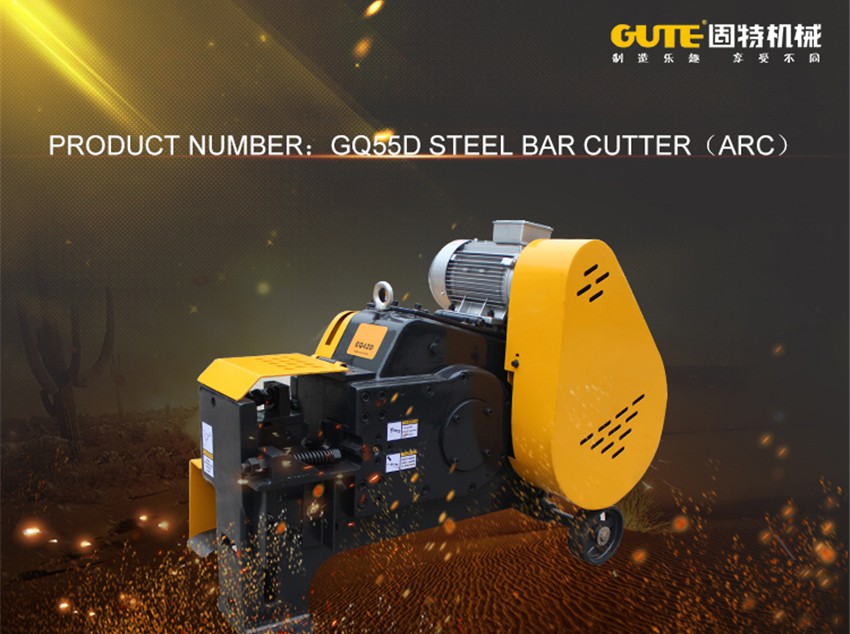

STEEL BAR CUTTER GQ55D

CUTTING CAPACITY

6-50 mm (ob ≤450N/mm2)

6-45 mm (ob ≤650N/mm2)

FLAT STEEL

80 x 15 mm


ANGLE STEEL

50 x 50 mm


TYPE OF MOTOR

Y112M-2


MOTOR POWER

4 KW-2P


MOTOR SAFETY

IP44, IP54, IP55


MOTOR ROTATION SPEED

2880 R/min


CUTTING SPEED

41 T/min


WEIGHT

630 Kg.


EXTERNAL DIMENSIONS

1270*650*950 mm


CERTIFICATION

 2006/42/EC - 2006/95/EC - ISO 9001:2008
