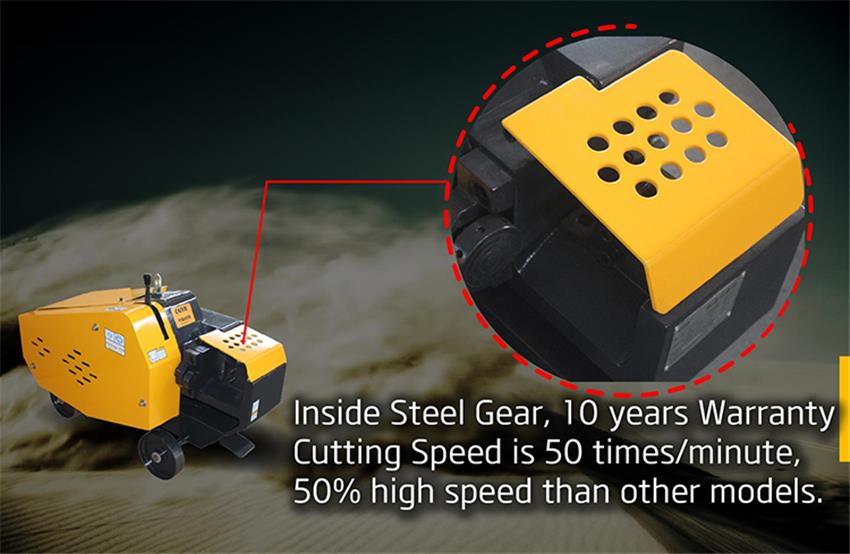

Manual Bar Cutter

Feature:
Have capacity to cut bars of diameter 42mm
Cast iron main body frame provides rigidness
Facilitated with well lubricated gears that leads to smooth functioning
3 phase motor provides excellent power while cutting Replaceable blades

Product Details


1. The use of special material of the circular blade, dedicated cut off straight thread steel bars, cut off after the cross section of steel, can be directly rolling wire processing;

2. The chassis is made of precision film casting, thicker shell wall, the strength is improved, the internal gear, connecting rod, knife seat are selected precision forging, CNC machine tool processing, high standard heat treatment, advanced technology and technology to ensure that each product quality;
3. Bearing with high quality alloy material, connecting rod for the bronze material, improve the wear resistance of lubrication to ensure the stability of its quality;
4. High-strength alloy blade to ensure that all kinds of steel cutting accurate.


STEEL BAR CUTTER GQ45E

CUTTING CAPACITY

6-42 mm (ob ≤450N/mm2)

6-36 mm (ob ≤650N/mm2)

FLAT STEEL

70 x 15 mm


ANGLE STEEL

50 x 50 mm


TYPE OF MOTOR

Y112M-2


MOTOR POWER

3 KW-2P


MOTOR SAFETY

IP44, IP54, IP55


MOTOR ROTATION SPEED

2860 R/min


CUTTING SPEED

38 T/min


WEIGHT

425 Kg.


EXTERNAL DIMENSIONS

1150*480*800 mm


CERTIFICATION

ISO 9001:2008
