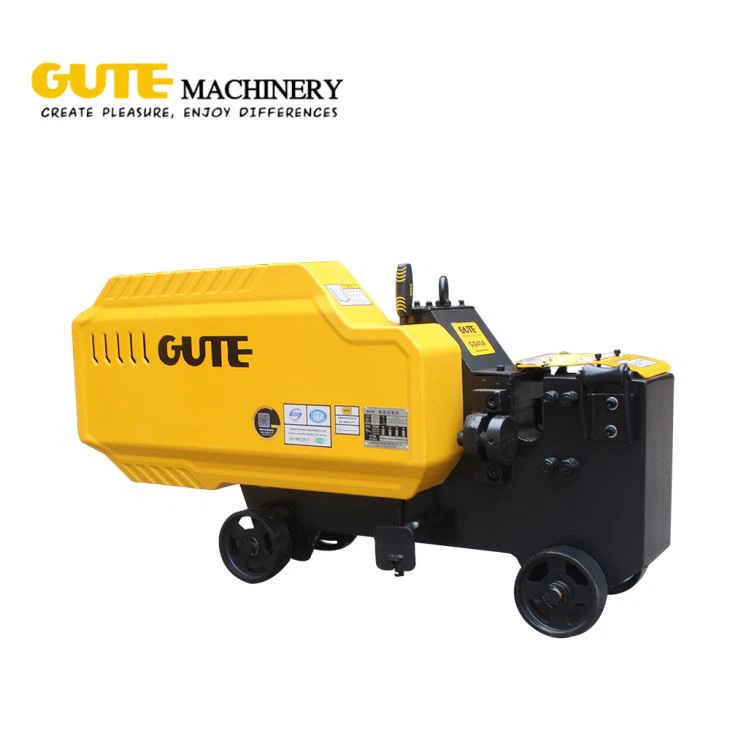

Iron Bar Cutting Machine

Feature:
Have capacity to cut bars of diameter 36mm
Cast iron main body frame provides rigidness
Facilitated with well lubricated gears that leads to smooth functioning
3 phase motor provides excellent power while cutting Replaceable blades

Product Details


•GQ40 adopts SHAFTS, CONNECTION ROD and BLADES made of high-quality alloyed steel with required heat treatment and 12mm thick external case to ensure reliable performances also under heavy loads and long working life.

•Thick and durable BLADES (4 edges) to ensure accurate cutting with all kinds of steel bar.

•CE Certificated dust proof MOTOR with aluminium shell.

•CE Certification (2006/42/EC - 2006/95/EC).


MOTOR TYPE

GQ40

• MOTOR TYPE: Y100L-2

* Motors has 1 year warranty.

* VOLTAGE OPTIONS: any voltage from 220 to 440 / 220-380 (switchable)

FREQUENCY OPTIONS: 50Hz / 60Hz


STEEL BAR CUTTER GQ40

CUTTING CAPACITY

6-36 mm (ob ≤450N/mm2)

6-34 mm (ob ≤650N/mm2)

FLAT STEEL

32 x 32 mm


ANGLE STEEL

50 x 50 mm


TYPE OF MOTOR

Y100L-2


MOTOR POWER

3 KW-2P


MOTOR SAFETY

IP44, IP54, IP55


MOTOR ROTATION SPEED

2860 R/min


CUTTING SPEED

32 T/min


WEIGHT

380 Kg.


EXTERNAL DIMENSIONS

1280 X 460X 700mm


CERTIFICATION

2006/42/EC - 2006/95/EC
