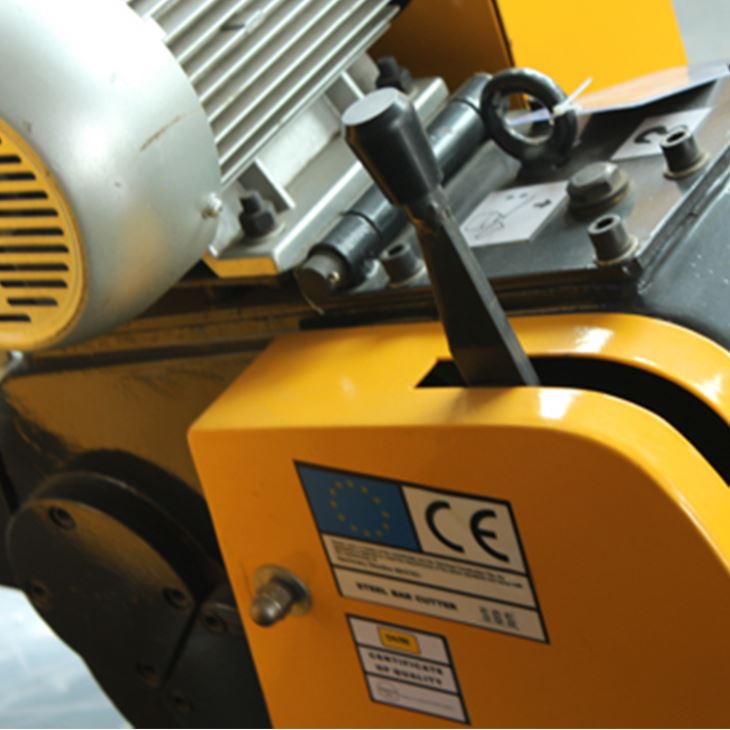

Electric Rebar Cutter

Feature:
Have capacity to cut bars of diameter up to 32mm
Cast iron main body frame provides rigidness
Facilitated with well lubricated gears that leads to smooth functioning
3 phase motor provides excellent power while cutting Replaceable blades

Product Details


•GQ35D adopts GEARS, SHAFTS, CONNECTION ROD and BLADES made of high-quality alloyed steel with required heat treatment (quenching/ tempering/ high frequency) and 15mm thick external case to ensure reliable performances also under heavy loads and long working life.

•CONNECTION ROD has high hardness degree on attaching part with the blade, its internal side is made of tin-bronze to avoid abrasions while touching the crankshaft.

•Thick and durable BLADES to ensure accurate cutting with all kinds of steel bar (square blade or moon-shape blade option).

•High cutting efficiency with low power consumption.

•CE Certificated dust proof MOTOR with aluminium shell.

•CE Certification (2006/42/EC - 2006/95/EC).


MOTOR TYPE

GQ35D

• NAME: Y90L-2

• POWER: 2.2 kw-2P / 3 HP

• MAGNETIC STARTER: QCX8-16

• SAFETY: IP44, IP54, IP55

• EFFICIENCY: 81 %

* Motors has 1 year warranty.

* VOLTAGE OPTIONS: any voltage from 220 to 440 / 220-380 (switchable)

* FREQUENCY OPTIONS: 50Hz / 60Hz


STEEL BAR CUTTER GQ35D

CUTTING CAPACITY

6-32mm (ob ≤450N/mm2)

6-28 mm (ob ≤650N/mm2)

FLAT STEEL

50 x 12 mm


ANGLE STEEL

42 x 42 mm


TYPE OF MOTOR

Y90L-2


MOTOR POWER

2.2 KW-2P


HORSE POWER

3 HP


MOTOR EFFICIENCY

81 %


MOTOR SAFETY

IP44, IP54, IP55


MOTOR ROTATION SPEED

2860 R/min


CUTTING SPEED

93 T/min


WEIGHT

340 Kg.


EXTERNAL DIMENSIONS

940*580*800 mm


CERTIFICATION

2006/42/EC - 2006/95/EC
