Steel Rod Bender

Feature:
Bending capacity up to 40mm
3 Phase Motor provides excellent power
Excellent performance
Less noise and vibration

Product Details

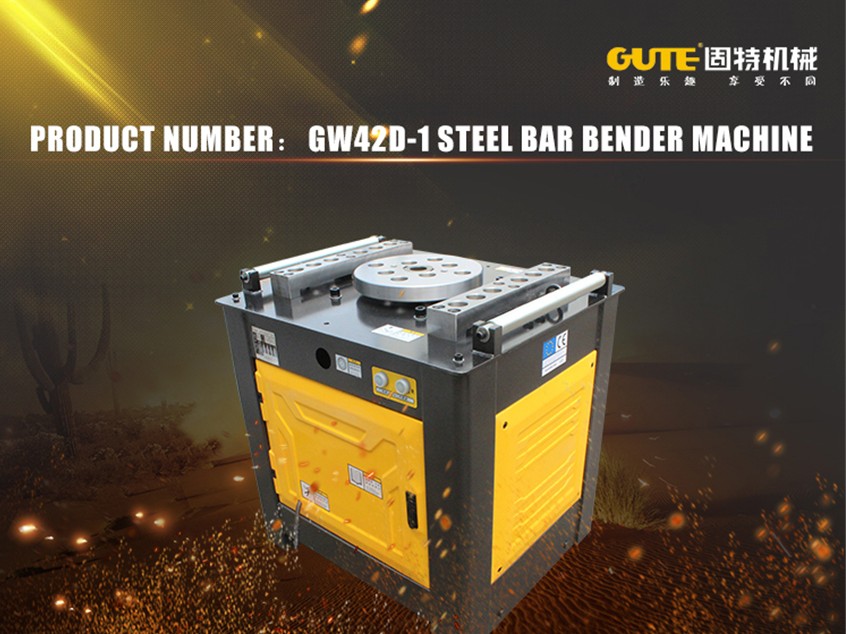

Bar bending machine is one of the steel bar processing tools, it constituted by the motor, gear, operation disc, breaker and machine body. This machine is able to bend steel bar with diameter 10-40mm into various shapes,and it is widely used in road, bridge, tunnels and other construction projects.


Model Type

GW42D-4 (automatic) YEJ 100L2-4 (Brake motor)

GW42D-1 (manual) Y100L2-4

• POWER: 3,0 kw-4P

• SAFETY: IP44, IP54, IP55 (dust proof)

• EFFICIENCY: 81 %

• CE Certificate of adequacy.

* Both kinds of motors automatic and manual have 1 year warranty.

* VOLTAGE OPTIONS: any voltage from 220 to 440 / 220-380 (switchable)

* FREQUENCY OPTIONS: 50Hz / 60Hz


STEEL BAR BENDER GW42D AUTOMATIC / MANUAL

Bending Capacity

6-40 mm (ob ≤450N/mm2)

6-36 mm (ob ≤650N/mm2)

Operation

Automatic

Manual

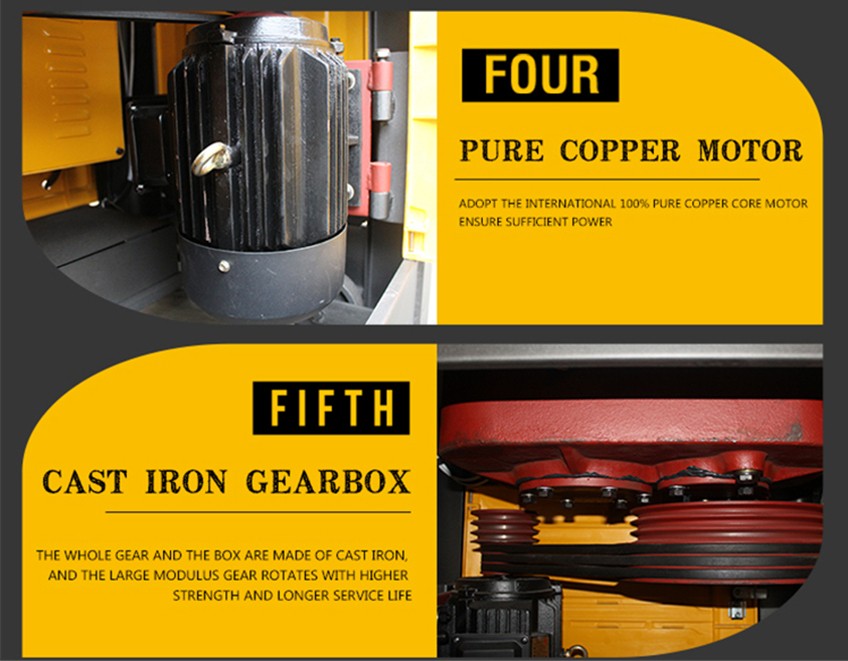

Type of Motor

YEJ 100L2-4 (Brake motor)

Y100L2-4

Motor Power

3 KW-4P

3 KW-4P

Motor Rotation Speed

1430 R/min

1430 R/min

Speed of Working Disk

12 R/min

12 R/min

Noise Value (1m away)

≤75dB(A)

≤75dB(A)

Weight

360 Kg.

320 Kg.

Dimension

810*760*860 mm

810*760*860 mm

Certification

2006/42/EC    -  2006/95/EC / ISO 9001:2008
