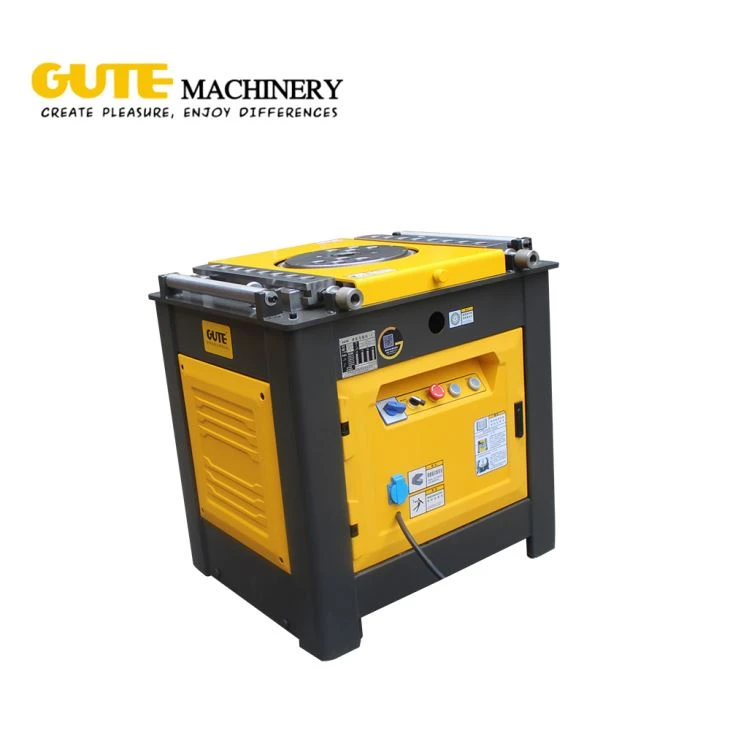

Manual Steel Bar Bender

Feature:
Bending capacity up to 45mm
3 Phase Motor provides excellent power
Excellent performance
Less noise and vibration

Product Details


1.GW series adopts the fully enclosed gear box separated from the working disk for no distortions even under the condition of heavy loads and no oil leaking while lifting the machine.

2.Gears,gear shafts,working disk,stop gauge,saddles,pile heads and pile head bushes made of high-quality alloyed steel with proper heat treatment(quenching/tempering/high frequency)and 3mm thick external case to ensure high performances also under heavy loads and long working life.

3.Dust proof brake motor and two limit switch to ensure the accuracy of the bending angle also after stopping and restarting.

4.Insert pin type disk and movable saddles for a precise adjusting of the bending angle.

5.CE certification


STEEL BAR BENDER GW55D AUTOMATIC / MANUAL

Bending Capacity

6-45 mm (ob ≤450N/mm2)

6-42 mm (ob ≤650N/mm2)

Operation

Automatic

Manual

Type of Motor

YEJ 112M-4 (Brake motor)

Y 112M-4

Motor Power

4 KW-4P

4 KW-4P

HORSE POWER

5.5 HP

5.5 HP

Motor Rotation Speed

1440 R/min

1440 R/min

Speed of Working Disk

8 R/min

8 R/min

Noise Value (1m away)

≤75dB(A)

≤75dB(A)

Weight

595 Kg.

565Kg.

Dimension

910*700*910 mm

910*700*910 mm

Certification

2006/42/EC - 2006/95/EC / ISO 9001:2008
